truck spray booth TG-12-45

Yantai TARGET Electromechanical Equipment Co.,Ltd

truck spray booth TG-12-45

Place of Origin : Yantai

Brand Name : TARGET

Certification : CE

Model Number : TG-12-45

MOQ : 1

Price : 20000--40000

Packaging Details : Export standard package

Delivery Time : 10 days after receive all payment

Payment Terms : TT, L/C

Supply Ability : 1000 sets /Month

Contact Now

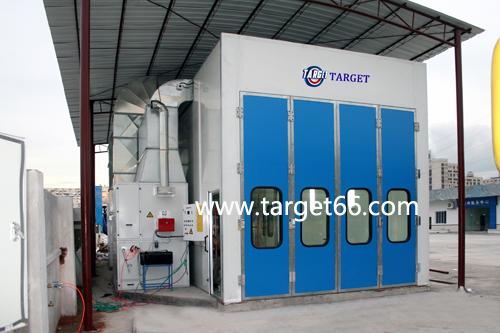

Product Photoes:

truck spray booth TG-12-45

truck spray booth TG-12-45

truck spray booth TG-12-45

Spray Booth 12m Truck Diesel Burner TG-12-45

Inside dimension

12000x4500x4000mm(L×W×H)

Outside dimension

12144x6396x4600mm(L×W×H)

Wall panel

Thickness:70mm, width:1150mm, with Polystyrene(EPS) insulation inside, colour:white.

Doors

Folding door, 3 -folds, 3500×3900 mm(WxH), galvanized steel cover frame, with polystyrene(EPS) inside, colour:blue.Escape door :1 unit , 800×2000mm(WxH), colour: white.

Basement

Without basement. 2 rows of pits in the ground for exhaust air, dimension of each pit is10350x760mm(LxW), with galvanized grilles made by twisted steel and flat bar above.

Intake air system

4x5.5KW double-intake centrifugal fansfor intake air, model isYDW4.5S, Total air capacity is65000M³/h.

Exhaust air system

2x7.5KW double-intake centrifugal fansfor exhaust air, with motor outside, belt-drive, ModelTAE-560H, total air capacity is50000 M³/h.

Damper actuates

Equip pneumatic dampers actuate from spraying to baking cycle, manual dampers for exhaust air.

Heating system

2units RIELLO RG5S diesel burners, stainless steel heat exchanger. Max. heating productivity:520000Kcal/h. Max. working temperature :80℃.

Filter system

Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter.

Filtering area

46M2

Lighting system

Ceiling lights:16units x 4 pcs=64pcs x 36W,with electronic ballasts. Side lights: :18units x 4pcs=72pcs x 36W,with electronic ballasts.

Control system

Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller, pressure gauge, exhaust reduction voltage motor start.

Total power

44Kw

Factory Photoes:

truck spray booth TG-12-45truck spray booth TG-12-45

Transporation for export:

truck spray booth TG-12-45
